The advanced view gives you access to a lot more options when creating Key Results

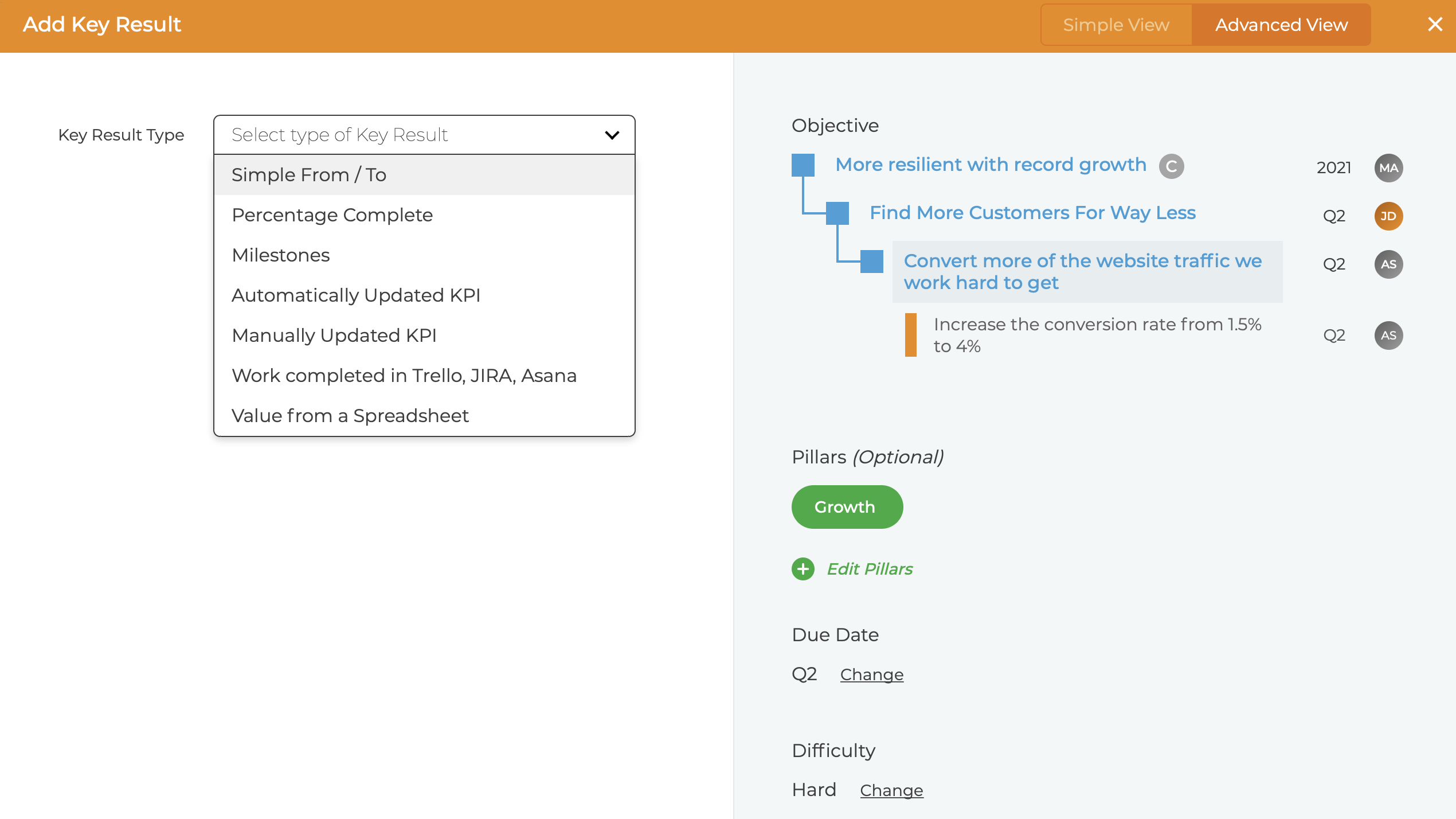

Type

First you have to select the type of Key Result you want to use

• Percentage Complete
  • This is a 0% to 100% Key Result where you will update the % Progress as you go.
  • See What are Percentage Complete / Milestone Key Results?


• Simple From / To
  • This is a simple way to write a Key Result and measure progress. Choose a Unit (Numeric / Currency / Percentage), From and To and you’re done. Simple add your latest value to update Key Result progress.
  • See What is a Simple From / To Key Result?


• Single Task
  • For Key Results that are a task that is either Completed or Not Completed
  • See What is the Single Task Key Result?


• Milestones
  • Set a % for specific Milestones e.g. 50% = Options Evaluated, 75% = Recommendation Made. Then achieve Milestones to progress the Key Result.
  • See What are Percentage Complete / Milestone Key Results?


• Automatically Updated KPIs
  • Create KPIs from Integrations. Key Result progress will automatically update based on the data that comes from the integration source.
  • See Creating Key Results based on connected software KPI


• Manually Updated KPI
  • These are the KPIs that have been set-up and are updated weekly or monthly by users.
  • See Creating Key Results based on manually updated KPI


• Progress from Child OKRs
  • These calculate their progress based on their Child OKRs
  • See Creating Key Results based on Child OKRs


• Progress from linked To-dos / Initiatives
  • These calculate their progress based on the linked To-dos / Initiatives
  • See Creating Key Results based on Linked To-dos / Initiatives

• Work completed in Trello, Asana, JIRA, Monday, Todoist, Hive, Azure DevOps Tasks
  • These calculate progress based on the number of completed tasks in a Board, Project, or Epic.
  • See Creating Key Results based on completing Trello, Asana, JIRA, Monday & Todoist Tasks


• Value from a spreadsheet
  • These calculate progress based on latest value from a single cell in a Google Sheet or Office 365 Excel document
  • See Creating Key Results based on Google Sheets and Office 365 Excel

Depending on which type you select you will get different flows.

The Pillars, Due Date, Difficulty and Notes can be changed in the right pane for all types.

Simple From / To

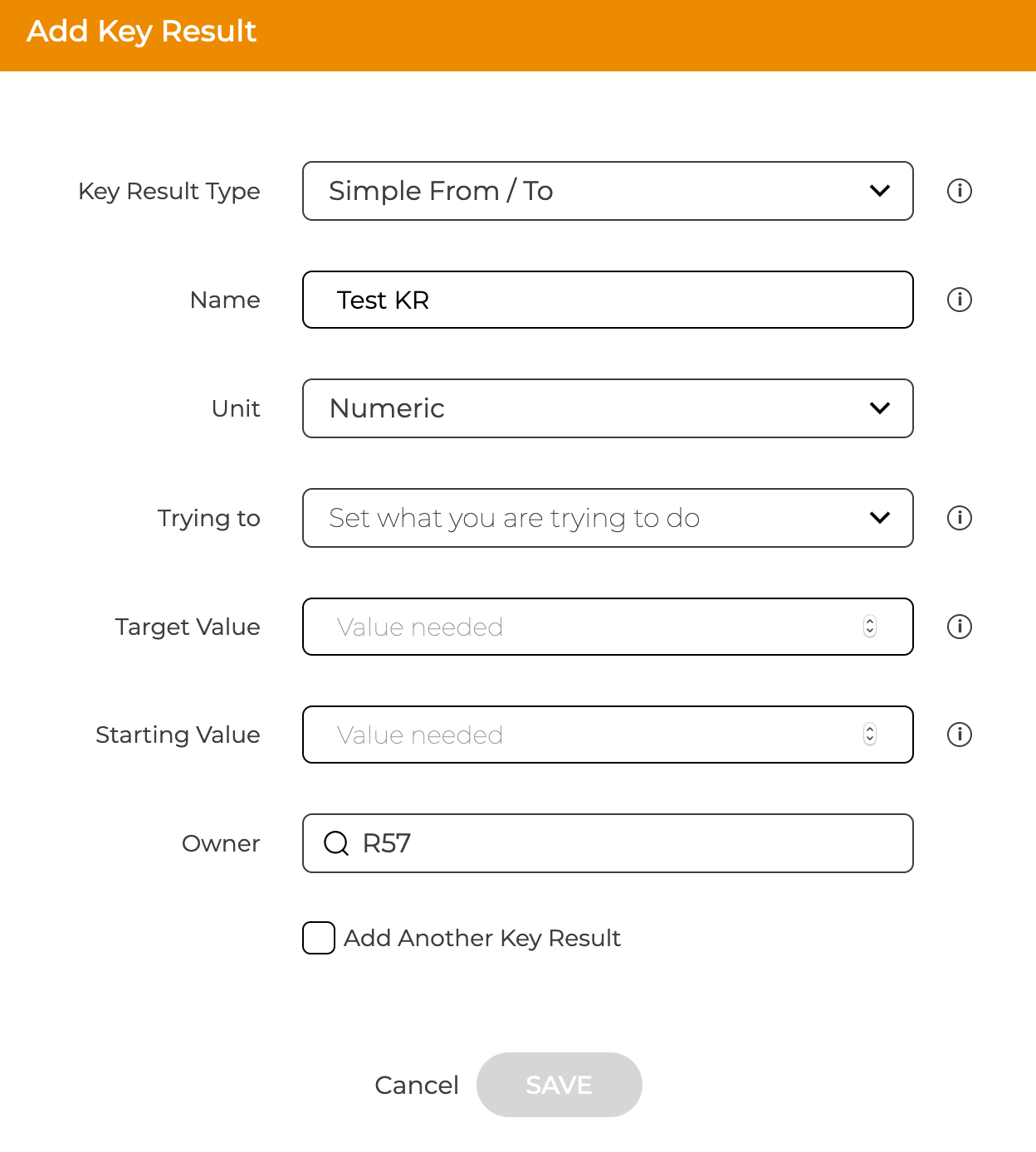

First fill in the Key Result Name and select the unit you are measuring (Numeric / Currency / Percentage). Then fill in what you are trying to do, set the target & start values, change the owner if needed and Save.

Percentage Complete

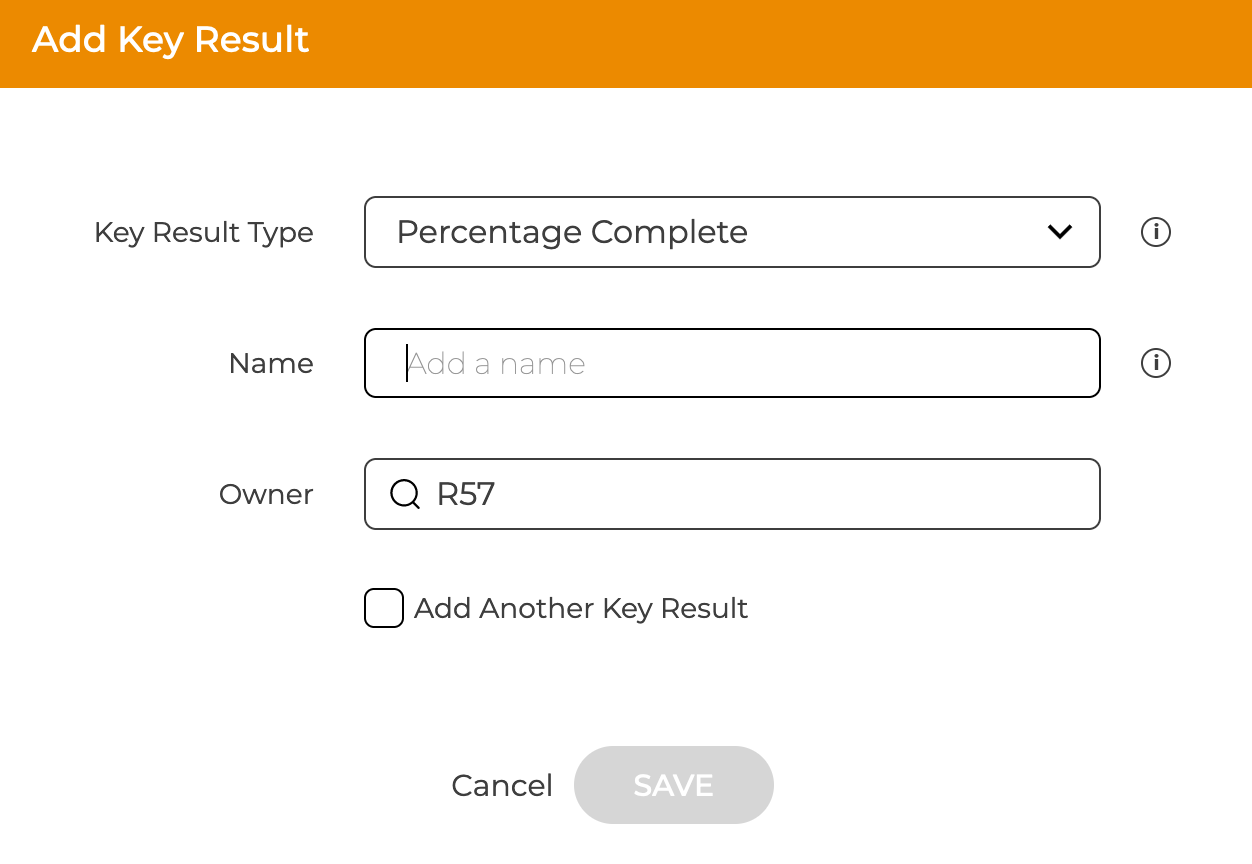

For this type all you need to do is add the Key Result Name and Save

Milestones

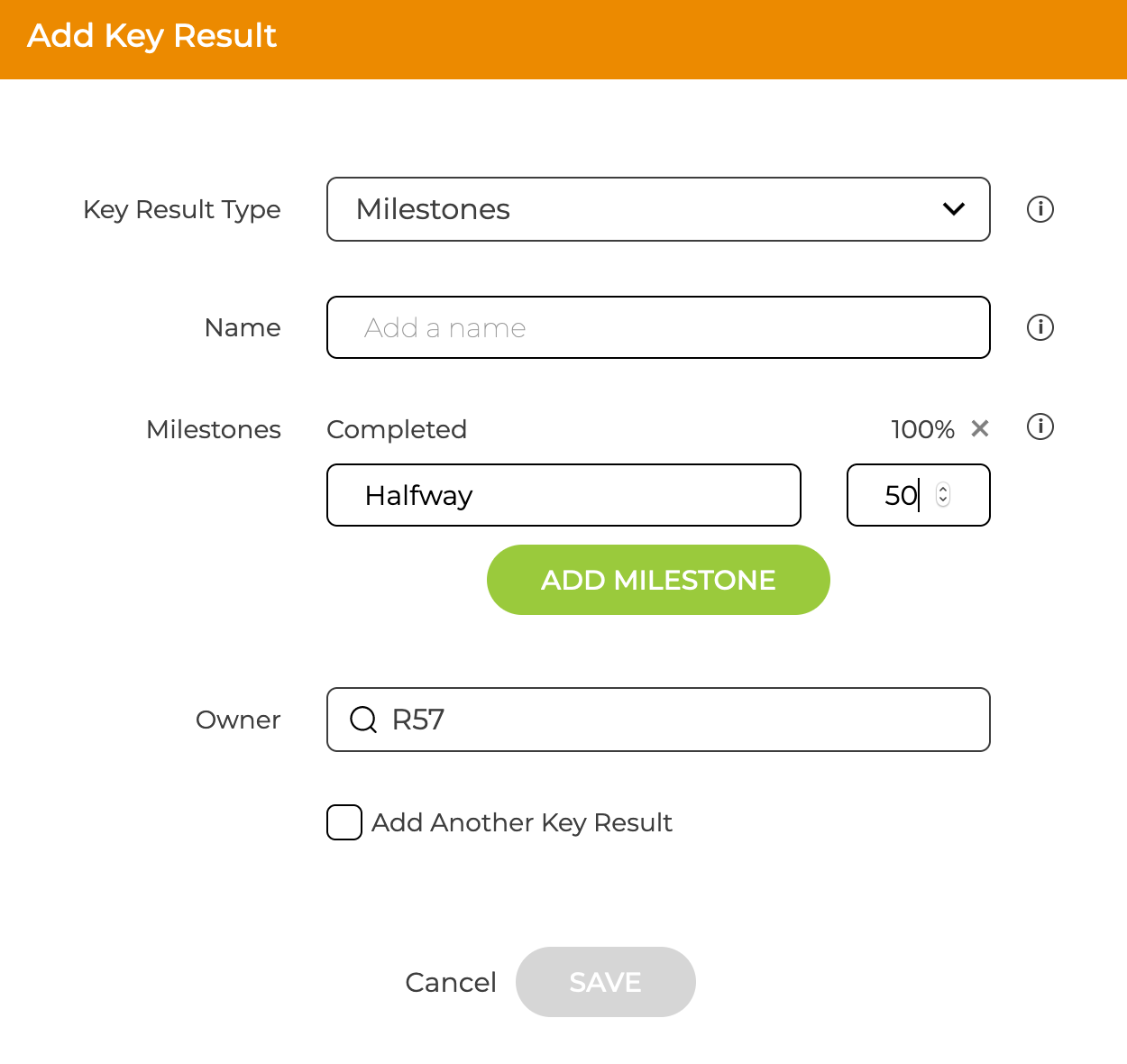

You can add as many milestones as needed and name the Key Result before Saving

For other types see

Creating Key Results based on connected software KPI

Creating Key Results based on manually updated KPI

Creating Key Results based on completing Trello, Asana, JIRA, Monday & Todoist Tasks

Creating Key Results based on Google Sheets and Office 365 Excel
